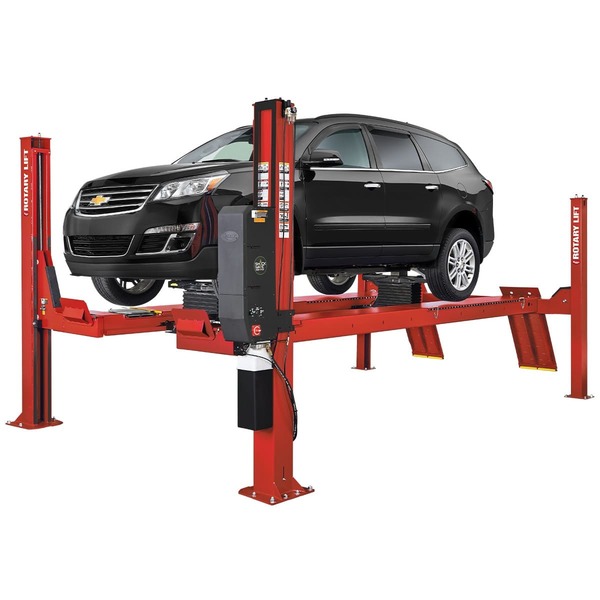

Four Post Lift (Without install)

Capacity: 14,000lbs.

2X Faster rise and descent than standard 4 post lifts.

The Shockwave DC power system gives you lower cost and more reliable operation while using two standard Group 24 batteries Shockwaves built in battery charger uses 110v power, eliminating the need for expensive 20v wiring – an installation savings of 80% or more!

Versatility: it’s the standard to which Rotary Lift’s four-post lifts are built. These lifts handle cars, vans, trucks – even light and medium duty commercial vehicles

 Open-End Design

 Dual Function Sentinel Lock System

 Air Filter/Regulator/Lubricator

 Single Piece Non-Welded Runway With Tracks For Rolling Jacks

 Internal Airline

 (2) 7,000 lbs. Capacity Rolling Jacks

 Stainless Steel Radius Gauges

 Rear Slip Plates

 Compatible With The New Technology Alignment Systems On The Market Today

Specification – ARO14 ARO14-L ARO14-EL

Max. Wheelbase 182″ 215″

Max. Two Wheel Align 171 1/4″ 209″

Max Four Wheel Align 164 3/4″ 164 3/4″

Min. Four Wheel Align 89″ 89″

Rise 78 3/4″ 78 3/4″

Length Overall 21′ 1″ 23′ 10″

Width Overall 11′ 8 1/2″ 11′ 8 1/2″

Inside of Columns 116 1/4″ 116 1/4″

Between Front and Rear Columns 194 3/4″ 227 3/4″

Height of Columns 9′ 1 1/16″ 9′ 1 1/16″

Width of Runways 20″ 20″

Height of Runways 7″ 7″

Width Between Runways 43″ 43″

Front of Runway to Center of Radius Gauge Adj. 18″-24″ Adj. 18″-24″

Lifting Capacity 14,000 lbs. 14,000 lbs.

Motor 2 HP 2 HP

Voltage Single Phase 208v-230v 208v-230v

Time of Full Rise 65 seconds 65 seconds

Min. Bay Size 15’x26′ 15’x28′
