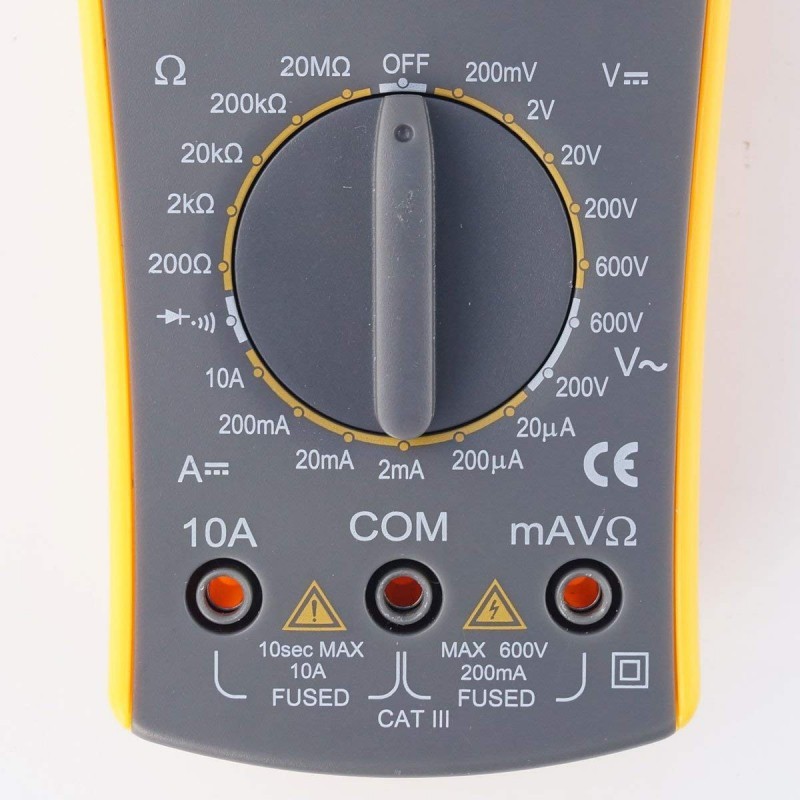

Victor VC830L Digital Multimeter

Victor VC830L Digital Meter

Features:

Special functions :

• Diode test
• Continuity buzzer
• Low battery indication
• Shockproof protection
• Input impedance

Specifications:

Weight : Approx 170g (including battery)

Dimensions : 145 x 85 x 30mm

In the Box

• Test leads
• Battery

DIGITAL MULTIMETER OPERATION MANUAL

1. General The instrument is a pocket digital multimeter, which is used to measure DCV, ACV, and DCA, resistance, diode and continuity test. It is an ideal tool for labs, household and wireless enthusiasts.

2. Safety Notes

1. Do not input a limit value over the range when measuring.

2. When measuring voltage higher than 36V DCV, 25V ACV, check the connection and insulation of the test leads to avoid electric shock.

3. Keep the test leads away from the testing point when converting function and range.

4. Don’t add voltage to the input terminal when measuring resistance.

1. Specification

1. General Features 1-1. Displaying: 22mm digit height LCD display.

1-2. Max. Indication: 1999 (31/2) auto polarity indication. 1-3. Sampling rate: approx. 3 times/ sec

1-4. Over Range Indication: MSD displays "1" 1-5. Low Battery Indication: " " symbol displays.

1-6. Operation Environment: (0～40) , relative humidity ℃ ＜80% .

1-7. Power: 9V battery (NEDA1604/6F22 or equivalent)

1-8. Measurement: 145×85×30mm (Length×Width×Height)

1-9. Weight: Approx. 170g (including a 9V battery)

1-10. Accessories: Operation Manual, Product Certificate, Packing box, Test leads and a 9V battery.

2. Technical Features Accuracy: ± (a%×reading+d) Surrounding: (23±5) , relative humidity ℃ ＜75%. One year warranty since the date of manufac
