New 300W Heavy Duty Soldering Iron

Specification :

Material: Iron

Chisel Point tip: Copper

handle: Wooden

Input voltage: AC 220V

Power: 300W

Temperature range: 450-600℃

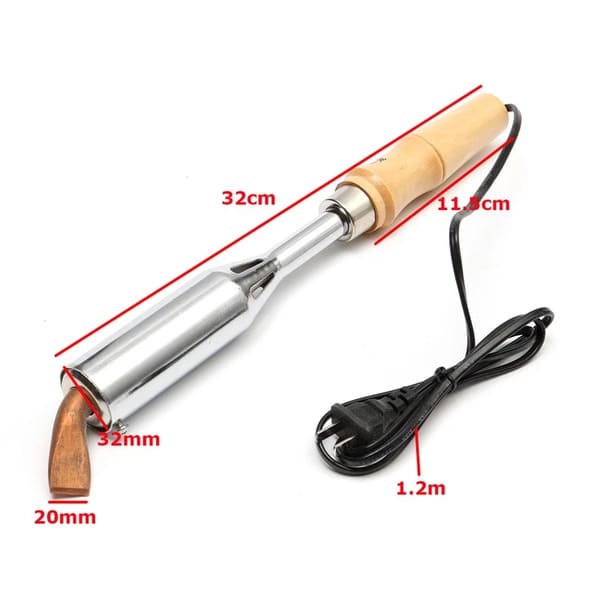

Soldering iron Length: 32cm

Chisel Point tip: 20mm

Cable length: 120cm

Uses: electronic maintenance production

Net weight: about 0.482Kg

Instructions for use:

1. Before using the soldering iron, check whether the voltage matches

2. Soldering iron should be kept dry, is strictly prohibited in the wet use

3. The new soldering iron in the initial use, due to electric heating elements may be produce heat a little smoke, as a normal phenomenon, will soon disappear

4. Fever after a few times to remove the tip, remove the oxide layer, avoid long time oxide layer blockage couldn't take out the welding head

5. Do not replace the parts under power

6. In order to improve the life of the tip, please use environmentally friendly, low acid, halogen-free flux products

7. When the tin does not stick, using fine sand skin polishing welding Tsui, and then infiltrated by flux on the tin; when no tin, the tip control about 250 temperature in the best

8. The use of voltage 220V ± 10% AC, in the use of soldering iron before, should distinguish between power and grounding wire whether connect right.
