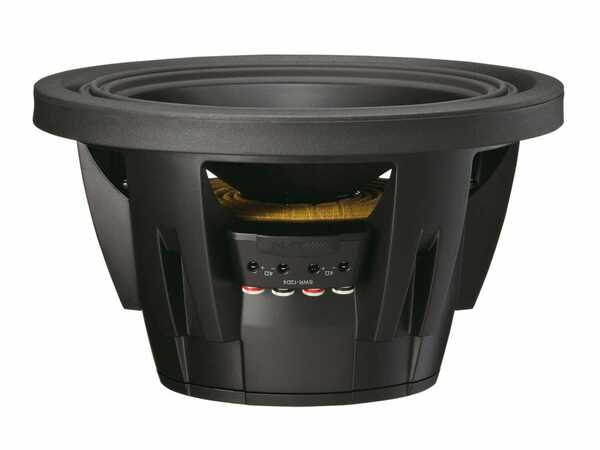

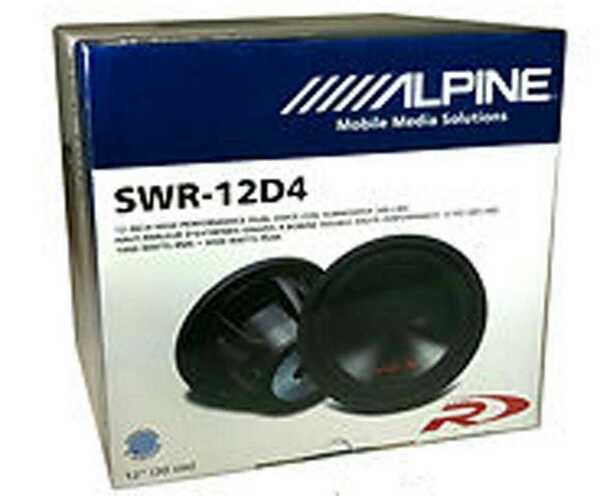

Alpine SWR-12D4 Sound System

(0 reviews)
Estimate Shipping Time: 1 days

Sold by:
R.B.C. Fashion

Price:
৳42,001 /1pc

Quantity:
(10 available)

Total Price:
Refund:
Share:

FEATURES

  • Diaphram
  • Material: Oversized Hairline-Textured Mica Poly Dustcap w/
  • Kevlar Reinforced Pulp Paper Cone Body
  • Design: 2-Piece Parabolic

Surround

  • Material: Injected Molded Santoprene.
  • Design: High Amplitude Multi-Roll H.A.M.R Surround Design (Patent Pending)
  • Spider
  • Material: Conex
  • Design: 10 Segment High-Roll Progressive Design
  • Voice Coil
  • Material: 180ºC High Temp Wire on Sprial-Cut Aluminum Bobbin
  • Design: 4-Layer Dual Voice Coil
  • Motor Structure
  • Pole Geometry: FEA Optimized Design w/ Compound Radius Pole Geometry
  • Configuration: Radial Vented VC Heat Sink and Airflow Management System (Patent #7,634,101)

Frame

  • Material: Cast Aluminum
  • Design: Perimeter Vented Heat Transfer (Patent Pending), Integrated Shorting Sleeve and Airflow Management System

Terminals

  • Layout: One Sided
  • Design: Heavy Duty 8 gauge Push with Housing, Banana Plug Jumper

Tinsel Leads

  • Design: Reinforced Layer Spider Integration (Patent #6,810,988)

Gasket

  • Design: Concealed Mount Gasket System

SPECIFICATIONS

  • Power Handling
  • PowerRange: 300W - 1000 Watts
  • RMS Power Handling: 1000W
  • Peak Power Handling: 3000W

Dimensions

  • Mounting Depth: 162mm (6.375′′)
  • Mounting Diameter: 275mm (10.875′′)
  • Displacement: 0.10 cu. Ft.
  • Added Volume: 0.09 cu. ft. (Reverse Mount, Magnet Out)

General

  • Frequency Response: 24Hz - 200Hz


There have been no reviews for this product yet.
