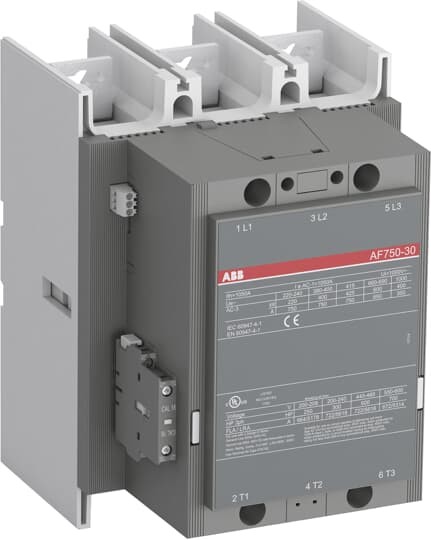

ABB Magnetic Contactor AF750-30-11

ABB Magnetic Contactor AF750-30-11

AC Non-Reversing IEC Contactors, AF Series

Item# AF750-30-11-68 - Contactor, 3-P N/O, 24-60VDC Coil, Includes 1NO & 1NC Auxiliary Contact

AF Series Information

• 4 Coils Cover 24 V ‑ 500 V AC and 20 V ‑ 500 V DC
• 24 V DC Coil for Direct Control by PLC‑Output > 250 mA, Low Holding Consumption up to 1.7 W
• Mirror, Mechanically Linked Contacts
• Built-in Surge Suppression
• Up to 560 kW ‑ 400 V AC‑3, 900 hp ‑ 480 V and 2850 A ‑ 690 V AC‑1, 2850 A ‑ General Use

Contactors containing integrated, electronically controlled coils which reduce energy consumption. Contains push‑in spring terminals which allow for fast, easy wiring. Contactors can overbridge voltage drops, sags.
