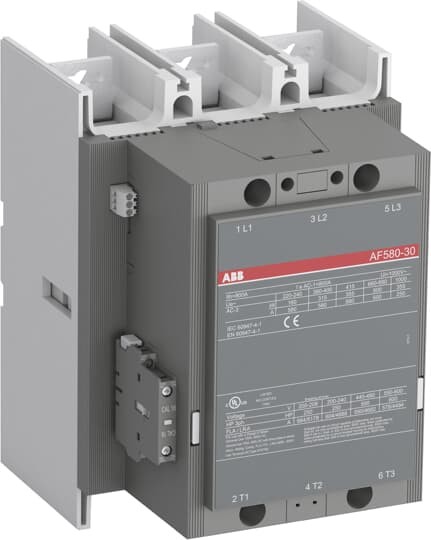

ABB Magnetic Contactor AF580-30-11-70

Brand ABB

0 /5.0 (0 reviews)

10 available

Minimum order qty 1

Qty

Brand ABB

Products from this brand

Detailed information for: AF580-30-11-70

Product Name: ABB Magnetic Contactor AF580-30-11-70

Model: AF 580-30-11

Brand: ABB

Option: 1 NO + 1 NC

Motor Rating: 315 KW

Ampere: 580

Origin: Switzerland

AF contractors are AC/DC operated
AF09-AF38 contractors include an electronic coil interface accepting a wide control voltage Ucmin - Ucmax. Only four coils cover control voltages 24 → 500 Vac or 20 → 500 Vdc
AF..Z contractors equipped with a Z coil type allow direct control by 24 Vdc, 500 mA PLC output and obtain a reduced holding coil consumption
AF.Z contractors withstand short dips and voltage interruptions (SEMI F47-0706 compliance)
AF40-AF96 contractors are mainly used for controlling 3-phase motors and power circuits up to 690 V AC and 220 V DC, these contractors are of the block type design with 3 main poles.
AF116-AF140 contractors are mainly used for controlling 3-phase motors and power circuits up to 690 V AC, AF146 up to 1000 V AC
AF190-AF370 contractors are mainly used for controlling 3-phase motors and power circuits up to 1000 V AC, these contractors are of the block type design with 3 main poles.
AF contractors have built in surge protection and does not require any additional surge suppressors
